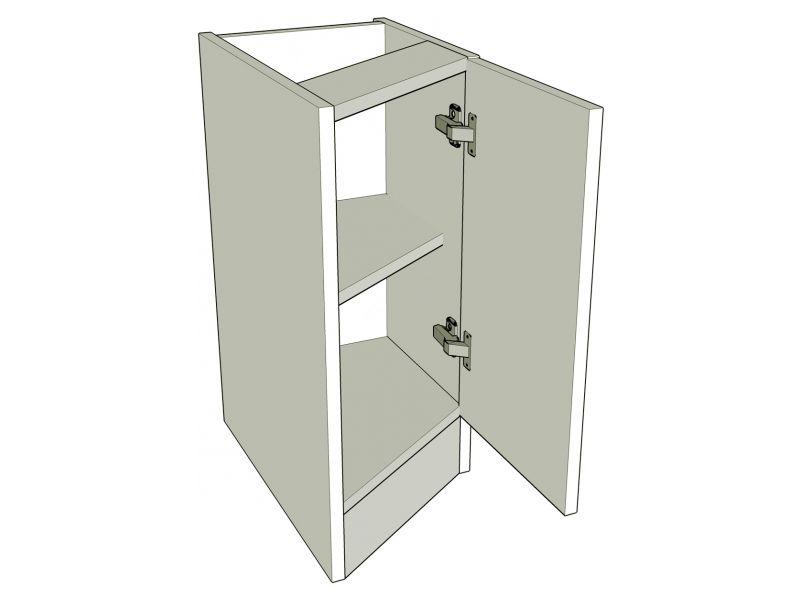

Standard Height Splayed base unit - 760mm High (Suits a 655mm high Door) 470mm Deep gable – (488mm with door)

STANDARD HEIGHT SPALYED BASE UNIT SINGLE DOOR 760mm H x 470mm D with the Gables to the floor & a 100mm integral plinth. Supplied complete with a cam & dowelled splayed top, 1 x back panel and 1 x 100mm base rails, 1 x angled plinth (Undrilled). 1 x Loose splayed base bottom shelf undrilled. 1 x Adjustable splayed shelf and shelf supports. 2 Hinge plates, 2 x soft close 30 degree hinges. The gables are predrilled for all items. 4 x Adjustable feet. 3.5 x 16mm & 3.5 x 30mm Screws. (Carcass Supplied assembled)
ADJUSTABLE DIAGONAL SHAPED SHELVES 361mm deep supplied with 4 clear plastic and steel shelf supports. (Optional Extra)
STANDARD SERVICE VOID 25mm.
